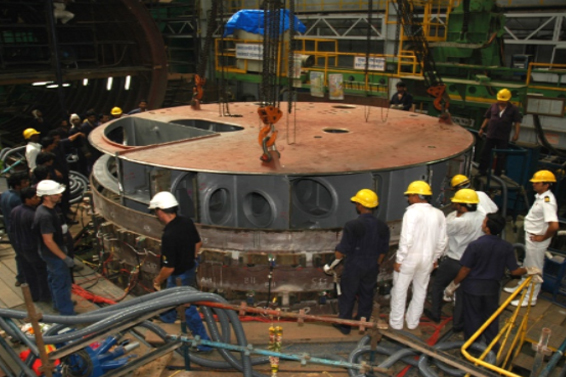

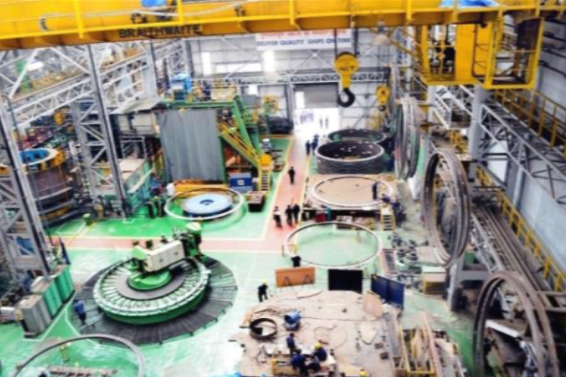

Three dedicated workshops have been set up for series construction and assembly of pressure hull elements. 08 in no?s advanced automated welding stations are available here for stringent quality welding operations required in submarine construction process. Exclusive blasting and painting chambers are also integrated with these workshops.

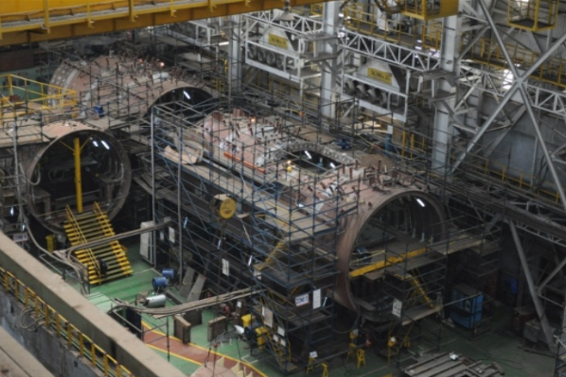

An integrated assembly workshop with built-in Dry Dock is one of the unique infrastructure and is an extremely important facility for construction of submarines. The dry dock is further connected to a wet basin.

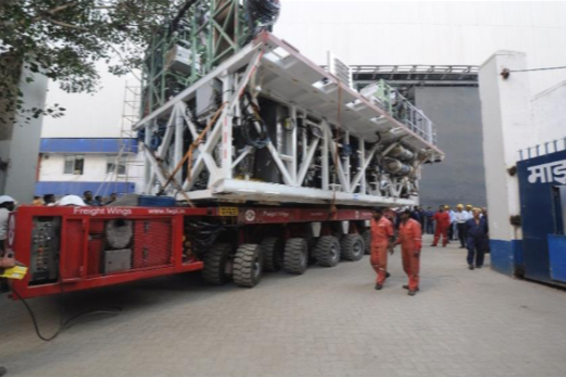

A new age workshop developed for modular construction of submarine wherein the submarine cradles are pre-outfitted before embarking these huge structures inside the submarine Pressure Hulls. workshops.

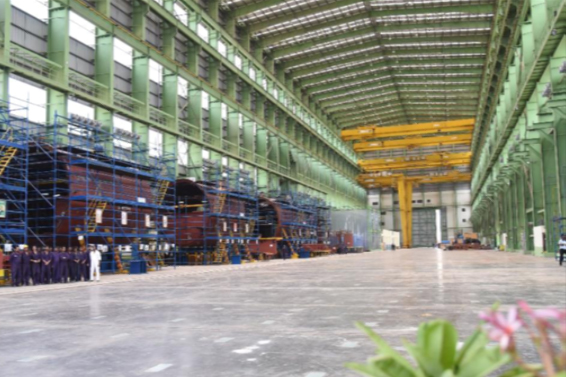

A massive 220 Meters long newly constructed greenfield workshop has been developed as a second line of submarine construction and can accommodate 5 submarines at a time during construction phase.
In addition to specialized pressure hull fabrication workshops, three additional workshops have been developed for fabrication of non-pressure hull and light fabrication components of submarine.

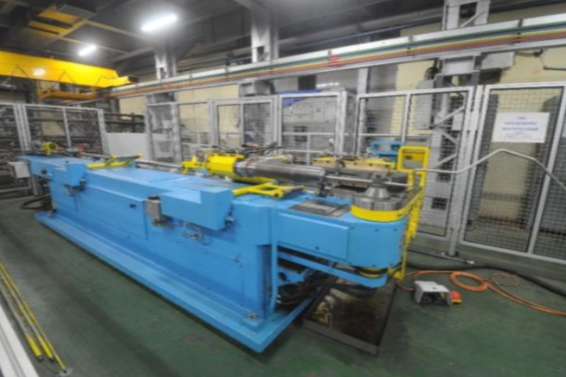

A dedicated Pipe fabrication workshop with highly advanced machinery and processing systems to meet stringent quality norms of submarine pipe fabrication. The shop provides a comprehensive one roof solution for pipe fabrication and associated engineering processes. It features modern CNC pipe bending machines, milling machines, Pressure testing chambers, painting chambers, specialized welding chambers etc. and is capable of production of around 1200 to 1500 pipes per month.

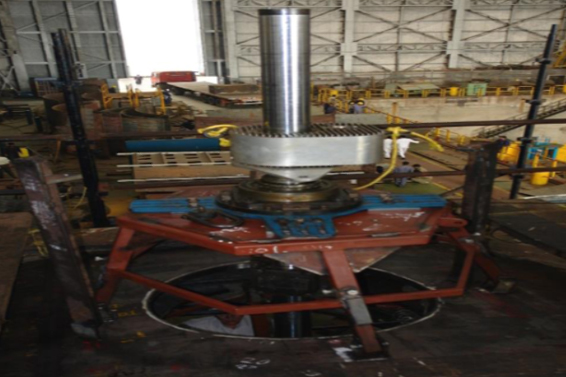

A specialized engineering operations shop which carry out onboard critical machining operations and is equipped with variety of customized machines developed for submarine construction. Apart from onboard machining, the shop has all basic engineering and machining facilities for support.

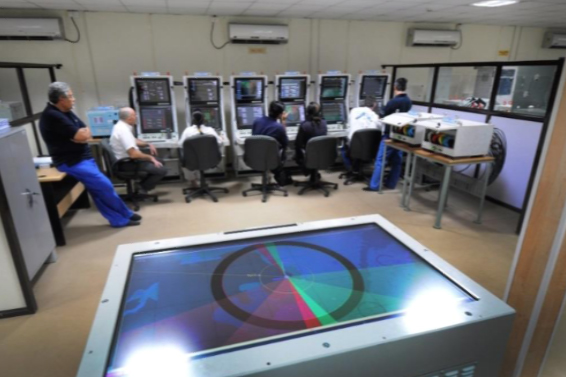

A Modular Shore Integration Facility (SIF) - advanced weapon integration platform closely resembles the "Real Platform Environment" onboard submarines in which the weapons and sensors are actually deployed. In this facility, the weapon and sensor systems are physically integrated using the same type of cables, connectors, power supplies etc., as that used on the actual submarines. This facility is also equipped with Simulators and special test/measuring...
